XW6T

Common Terminal Blocks with Visible Indicators

XW6T

Our Value Design Products Increase the Value of Your Control Panels. Contributing to downsize control panels and save work. It can proper wiring without skillful operators, because of indicators make wiring completion simply visible.

(Unit: mm)

Model

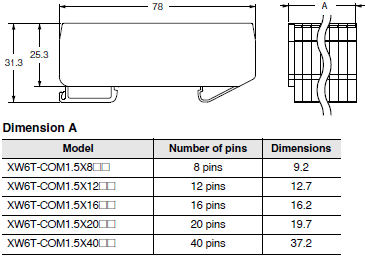

XW6T-COM1.5X[][][][]

XW6T Dimensions 2

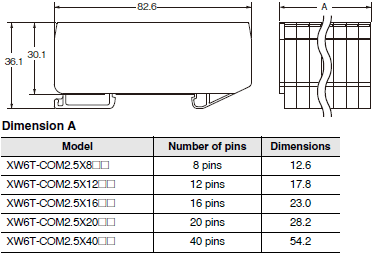

XW6T-COM2.5X[][][][]

XW6T Dimensions 3

Accessories (Order separately)

(For addition) Terminal Block

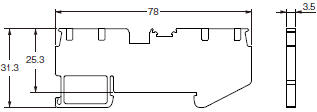

XW6T-COM1.5

XW6T Dimensions 6

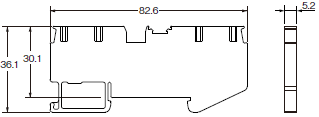

XW6T-COM2.5

XW6T Dimensions 7

Short Bars

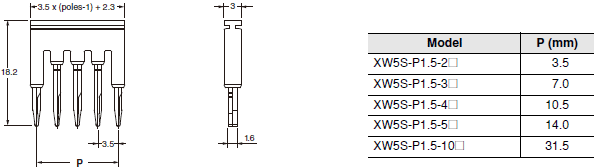

XW5S-P1.5-[]

XW6T Dimensions 9

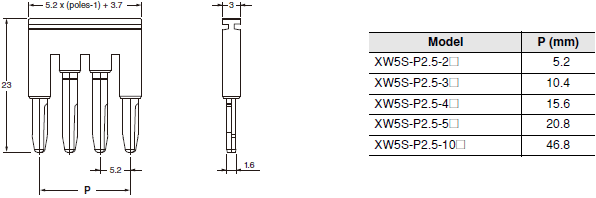

XW5S-P2.5-[]

XW6T Dimensions 10

End Cover

XW6E-COM1.5

XW6T Dimensions 12

XW6E-COM2.5

XW6T Dimensions 13

End Brackets

XW5Z-EP6

XW6T Dimensions 15
