FHV7 Series

Smart Camera

FHV7 Series

Ultimate flexibility to fit ever-changing production scene

Model Number Structure

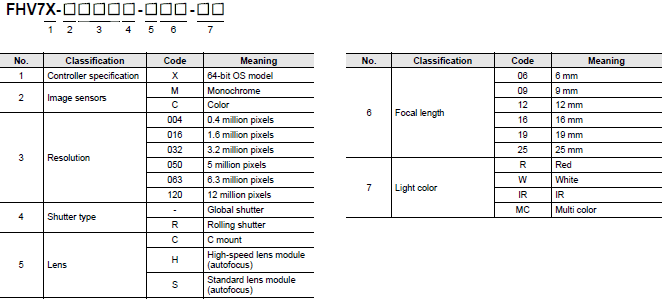

FHV7 Series Model Number Legend

Use this legend when determining the product specifications from the model number. When ordering, use a model number from the table in Ordering Information.

FHV7 Series Lineup 2

Configuration

For the Smart Camera FHV7 series, there are five configurations below by module combinations.

Smart camera Lens Internal
lighting
Protective
structure
Integrated
model
Appearance Configura-
tion
0.4 million pixels
1.6 million pixels
3.2 million pixels
5 million pixels
6.3 million pixels
12 million pixels
FHV7H-[]004-[]
FHV7H-[]016-[]
FHV7H-[]032-[]
FHV7H-[]050-[]
FHV7H-[]063R-[]
FHV7H-[]120R-[]
C mount
lens
3Z4SLE
SV-[][][][]V
3Z4SLE
SV-[][][][]H
N/A IP40 FHV7H-
[][][][][]-C
3740_lu_2_1 C mount
lens/IP40
IP67

Waterproof
Hoods
required
FHV-XHD-S
FHV-XHD-L
N/A 3740_lu_2_2 C mount
lens/IP67
0.4 million pixels
1.6 million pixels
3.2 million pixels
6.3 million pixels
FHV7H-[]004-[]
FHV7H-[]016-[]
FHV7H-[]032-[]
FHV7H-[]063R-[]
FHV lens
module
FHV-LEM-
S[][]
N/A IP40 FHV7H-
[][][][][]-
S[][]
3740_lu_2_3 Lens
module/IP40
IP67

Waterproof
Hoods
required
FHV-XHD-LEM
N/A 3740_lu_2_4 Lens
module/IP67
FHV-
LTM-[][]
IP67 FHV7H-
[][][][][]-
S[][]-[][]
3740_lu_2_5 Lens module
/Internal
lighing - IP67

Ordering Information

Smart Cameras

C Mount Models

Item Resolution Model
Color Monochrome
3740_lu_3_1 0.4 million pixels FHV7H-C004-C FHV7H-M004-C
1.6 million pixels FHV7H-C016-C FHV7H-M016-C
3.2 million pixels FHV7H-C032-C FHV7H-M032-C
5 million pixels FHV7H-C050-C FHV7H-M050-C
6.3 million pixels FHV7H-C063R-C FHV7H-M063R-C
12 million pixels FHV7H-C120R-C FHV7H-M120R-C

Lens Modules

Item Focal length * Model
3740_lu_4_1 Autofocus Lens 6 mm FHV-LEM-S06
9 mm FHV-LEM-S09
12 mm FHV-LEM-S12
16 mm FHV-LEM-S16
25 mm FHV-LEM-S25

* For the focal length and horizontal field of view, refer to specifications and optical charts of the lens module (Catalog).
  Refer to the Vision Accessory Catalog (Cat No. Q198) for details on C-mount lenses.

Lighting Modules

Item Light color Model
3740_lu_5_1 Multi color FHV-LTM-MC
3740_lu_5_2 Red FHV-LTM-R
3740_lu_5_3 White FHV-LTM-W
3740_lu_5_4 IR FHV-LTM-IR

All-in-one Models with Lens Module

Item Resolution Lens Focal length
*
Model
Color Monochrome
3740_lu_6_1 0.4 million pixels Autofocus Lens 6 mm FHV7H-C004-S06 FHV7H-M004-S06
9 mm FHV7H-C004-S09 FHV7H-M004-S09
12 mm FHV7H-C004-S12 FHV7H-M004-S12
16 mm FHV7H-C004-S16 FHV7H-M004-S16
25 mm FHV7H-C004-S25 FHV7H-M004-S25
1.6 million pixels Autofocus Lens 6 mm FHV7H-C016-S06 FHV7H-M016-S06
9 mm FHV7H-C016-S09 FHV7H-M016-S09
12 mm FHV7H-C016-S12 FHV7H-M016-S12
16 mm FHV7H-C016-S16 FHV7H-M016-S16
25 mm FHV7H-C016-S25 FHV7H-M016-S25
3.2 million pixels Autofocus Lens 6 mm FHV7H-C032-S06 FHV7H-M032-S06
9 mm FHV7H-C032-S09 FHV7H-M032-S09
12 mm FHV7H-C032-S12 FHV7H-M032-S12
16 mm FHV7H-C032-S16 FHV7H-M032-S16
25 mm FHV7H-C032-S25 FHV7H-M032-S25
6.3 million pixels Autofocus Lens 6 mm FHV7H-C063R-S06 FHV7H-M063R-S06
9 mm FHV7H-C063R-S09 FHV7H-M063R-S09
12 mm FHV7H-C063R-S12 FHV7H-M063R-S12
16 mm FHV7H-C063R-S16 FHV7H-M063R-S16
25 mm FHV7H-C063R-S25 FHV7H-M063R-S25

* For the focal length and horizontal field of view, refer to specifications and optical charts of the lens module (Catalog).

All-in-one Models with Lens and Lighting Modules

Item Reso-
lution
Lens Focal
length *
Light
color
Model
Color Monochrome
3740_lu_7_1 0.4 million
pixels
Autofocus
Lens
6 mm Multi color FHV7H-C004-S06-MC FHV7H-M004-S06-MC
Red --- FHV7H-M004-S06-R
White FHV7H-C004-S06-W FHV7H-M004-S06-W
IR --- FHV7H-M004-S06-IR
9 mm Multi color FHV7H-C004-S09-MC FHV7H-M004-S09-MC
Red --- FHV7H-M004-S09-R
White FHV7H-C004-S09-W FHV7H-M004-S09-W
IR --- FHV7H-M004-S09-IR
12 mm Multi color FHV7H-C004-S12-MC FHV7H-M004-S12-MC
Red --- FHV7H-M004-S12-R
White FHV7H-C004-S12-W FHV7H-M004-S12-W
IR --- FHV7H-M004-S12-IR
16 mm Multi color FHV7H-C004-S16-MC FHV7H-M004-S16-MC
Red --- FHV7H-M004-S16-R
White FHV7H-C004-S16-W FHV7H-M004-S16-W
IR --- FHV7H-M004-S16-IR
25 mm Multi color FHV7H-C004-S25-MC FHV7H-M004-S25-MC
Red --- FHV7H-M004-S25-R
White FHV7H-C004-S25-W FHV7H-M004-S25-W
IR --- FHV7H-M004-S25-IR
1.6 million
pixels
Autofocus
Lens
6 mm Multi color FHV7H-C016-S06-MC FHV7H-M016-S06-MC
Red --- FHV7H-M016-S06-R
White FHV7H-C016-S06-W FHV7H-M016-S06-W
IR --- FHV7H-M016-S06-IR
9 mm Multi color FHV7H-C016-S09-MC FHV7H-M016-S09-MC
Red --- FHV7H-M016-S09-R
White FHV7H-C016-S09-W FHV7H-M016-S09-W
IR --- FHV7H-M016-S09-IR
12 mm Multi color FHV7H-C016-S12-MC FHV7H-M016-S12-MC
Red --- FHV7H-M016-S12-R
White FHV7H-C016-S12-W FHV7H-M016-S12-W
IR --- FHV7H-M016-S12-IR
16 mm Multi color FHV7H-C016-S16-MC FHV7H-M016-S16-MC
Red --- FHV7H-M016-S16-R
White FHV7H-C016-S16-W FHV7H-M016-S16-W
IR --- FHV7H-M016-S16-IR
25 mm Multi color FHV7H-C016-S25-MC FHV7H-M016-S25-MC
Red --- FHV7H-M016-S25-R
White FHV7H-C016-S25-W FHV7H-M016-S25-W
IR --- FHV7H-M016-S25-IR
3.2 million
pixels
Autofocus
Lens
6 mm Multi color FHV7H-C032-S06-MC FHV7H-M032-S06-MC
Red --- FHV7H-M032-S06-R
White FHV7H-C032-S06-W FHV7H-M032-S06-W
IR --- FHV7H-M032-S06-IR
9 mm Multi color FHV7H-C032-S09-MC FHV7H-M032-S09-MC
Red --- FHV7H-M032-S09-R
White FHV7H-C032-S09-W FHV7H-M032-S09-W
IR --- FHV7H-M032-S09-IR
12 mm Multi color FHV7H-C032-S12-MC FHV7H-M032-S12-MC
Red --- FHV7H-M032-S12-R
White FHV7H-C032-S12-W FHV7H-M032-S12-W
IR --- FHV7H-M032-S12-IR
16 mm Multi color FHV7H-C032-S16-MC FHV7H-M032-S16-MC
Red --- FHV7H-M032-S16-R
White FHV7H-C032-S16-W FHV7H-M032-S16-W
IR --- FHV7H-M032-S16-IR
25 mm Multi color FHV7H-C032-S25-MC FHV7H-M032-S25-MC
Red --- FHV7H-M032-S25-R
White FHV7H-C032-S25-W FHV7H-M032-S25-W
IR --- FHV7H-M032-S25-IR
6.3 million
pixels
Autofocus
Lens
6 mm Multi color FHV7H-C063R-S06-MC FHV7H-M063R-S06-MC
Red --- FHV7H-M063R-S06-R
White FHV7H-C063R-S06-W FHV7H-M063R-S06-W
IR --- FHV7H-M063R-S06-IR
9 mm Multi color FHV7H-C063R-S09-MC FHV7H-M063R-S09-MC
Red --- FHV7H-M063R-S09-R
White FHV7H-C063R-S09-W FHV7H-M063R-S09-W
IR --- FHV7H-M063R-S09-IR
12 mm Multi color FHV7H-C063R-S12-MC FHV7H-M063R-S12-MC
Red --- FHV7H-M063R-S12-R
White FHV7H-C063R-S12-W FHV7H-M063R-S12-W
IR --- FHV7H-M063R-S12-IR
16 mm Multi color FHV7H-C063R-S16-MC FHV7H-M063R-S16-MC
Red --- FHV7H-M063R-S16-R
White FHV7H-C063R-S16-W FHV7H-M063R-S16-W
IR --- FHV7H-M063R-S16-IR
25 mm Multi color FHV7H-C063R-S25-MC FHV7H-M063R-S25-MC
Red --- FHV7H-M063R-S25-R
White FHV7H-C063R-S25-W FHV7H-M063R-S25-W
IR --- FHV7H-M063R-S25-IR

* For the focal length and horizontal field of view, refer to specifications and optical charts of the lens module (Catalog).

Optical Filters

Item Model
3740_lu_8_1 Polarized Light Filter For visible light FHV-XPL
3740_lu_8_2 Polarized Light Filter For both infrared light and visible light FHV-XPL-IR
3740_lu_8_3 Diffusion Filter FHV-XDF

Waterproof Hoods

Required to ensure IP67 protection without using a lighting module.

Item Model
3740_lu_9_1 Waterproof Hood for Lens Modules FHV-XHD-LEM
3740_lu_9_2 Waterproof Hood for C-mount Lens (Short) *1 FHV-XHD-S
3740_lu_9_3 Waterproof Hood for C-mount Lens (Long) *2 FHV-XHD-L

*1. Can be used with the following lenses.
      3Z4S-LE SV-0614V, 3Z4S-LE SV-0813V, 3Z4S-LE SV-1214V, 3Z4S-LE SV-1614V, 3Z4S-LE SV-2514V
*2. Can be used with the following lenses.
      3Z4S-LE SV-0614H, 3Z4S-LE SV-0814H, 3Z4S-LE SV-1214H, 3Z4S-LE SV-1614H,
      3Z4S-LE SV-2514H, 3Z4S-LE SV-3514H, 3Z4S-LE SV-5014H

Cables

Item Cable length Model
3740_lu_10_1 I/O Cable (Bend Resistant) 2 m FHV-VDB 2M
3 m FHV-VDB 3M
5 m FHV-VDB 5M
10 m FHV-VDB 10M
20 m FHV-VDB 20M
3740_lu_10_2 I/O Cable (Bend Resistant, Right-angle) 2 m FHV-VDLB 2M
3 m FHV-VDLB 3M
5 m FHV-VDLB 5M
10 m FHV-VDLB 10M
20 m FHV-VDLB 20M
3740_lu_10_3 Ethernet Cable (Bend Resistant) 2 m FHV-VNB 2M
3 m FHV-VNB 3M
5 m FHV-VNB 5M
10 m FHV-VNB 10M
20 m FHV-VNB 20M
3740_lu_10_4 Ethernet Cable (Bend Resistant, Right-angle) 2 m FHV-VNLB 2M
3 m FHV-VNLB 3M
5 m FHV-VNLB 5M
10 m FHV-VNLB 10M
20 m FHV-VNLB 20M

Accessories

Item Model
3740_lu_11_1 Base Mount for Smart Cameras and Lighting Controllers FHV-XMT-7
3740_lu_11_2 Base Mount for Lighting Controllers FHV-XMT-7-TCC
3740_lu_11_3 Light Cover (for replacement) *1 FHV-XCV
3740_lu_11_4 Waterproof Cap (for replacement) for Ethernet Connecter FHV-XWC-ECN
3740_lu_11_5 for Light Connecter FHV-XWC-LCN
3740_lu_11_6 Waterproof Packing *2
(for replacement, 5 pcs)
for Camera FHV-XWP-CAM
3740_lu_11_7 for Lighting Module FHV-XWP-LTM
3740_lu_11_8 for Waterproof Hood FHV-XWP-HD-SL
3740_lu_11_9 Light-shielding for Lighting Module (for replacement, 3 pcs) *2 FHV-XLS-LTM
3740_lu_11_10 Facing cover for Lens Modules
(for replacement, cover 1pcs, screws 5 pcs (including one spare piece))
FHV-XFC-LEM-S
3740_lu_11_11 Facing cover for C-mount Lens
(for replacement, cover 1pcs, screws 5 pcs (including one spare piece))
FHV-XFC-C
--- Screw for microSD card cover (for replacement, 10 pcs) FHV-XSCR-MSD

*1. Adapted lighting module
     FHV-LTM-W, FHV-LTM-R, FHV-LTM-IR, FHV-LTM-MC
*2. Always replace when a module is removed.

Accessories

Item Descriptions Model
--- External Lights External lighting controller LED FLV Series
High-brightness LED FL-BR/DR Series
3740_lu_12_1 Industrial Switching Hubs
for EtherNet/IP and
Ethernet
3 port Failure detection: None Current consumption:
0.08 A
W4S1-03B
3740_lu_12_2 5 port Failure detection: None Current consumption:
0.12 A
W4S1-05B
5 port Failure detection: Supported W4S1-05C

Lenses

Refer to the Vision Accessory Catalog (Cat. No. Q198) for details.

Resolution Camera Model Size of image
element
Recommended lens
Standard
Lens
Telecentric
Lens
Vibrations and Shocks
Resistant Lens
0.4 million-pixel FHV7H-[]004 1/2.9” equivalent SV-V Series VS-TCH Series VS-MCA Series
Non-telecentric Macro
VS-MC Series
1.6 million-pixel FHV7H-[]016 1/2.9” equivalent
3.2 million-pixel FHV7H-[]032 1/1.8” equivalent SV-H Series
5 million-pixel FHV7H-[]060 2/3” equivalent
6.3 million-pixel FHV7H-[]063R 1/1.8” equivalent
12 million-pixel FHV7H-[]120R 1/1.7” equivalent
