NX-CSG / SL5 / SI / SO

NX-series Communication Control Unit/Safety Control Units

NX-CSG / SL5 / SI / SO

Quick, easy, and flexible to integrate safety into production lines

(Unit: mm)

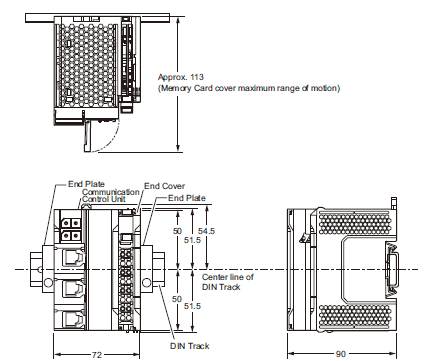

Communication Control Unit

NX-CSG320

NX-CSG / SL5 / SI / SO Dimensions 2

Note: For dimensions with the communications cable connected, refer to NX-series User's Manual Safety Control Unit/Communication Control Unit (Cat. No.Z395)

Safety Control Units

Safety CPU Units NX-SL5500/SL5700

NX-CSG / SL5 / SI / SO Dimensions 4

Safety Input Units NX-SIH400/SID800
Safety Output Units NX-SOH200/SOD400

NX-CSG / SL5 / SI / SO Dimensions 5

*1. The dimension is 1.35 mm for Units with lot numbers through December 2014.
*2. The dimension from the attachment surface of the DIN Track to the front surface of the Safety I/O Unit.

End Cover NX-END02

NX-CSG / SL5 / SI / SO Dimensions 7

* The dimension from the attachment surface of the DIN
   Track to the front surface of the end cover.

SD Memory Card HMC-SD291/SD491

NX-CSG / SL5 / SI / SO Dimensions 8
