Industrial Automation

UMA Series

Safety Mat

UMA Series

Easy-to-install safety mat with advanced features

last update: November 1, 2022

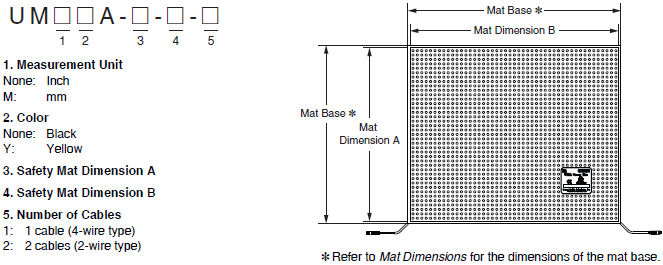

Model Number Structure

Ordering Information

Safety Mats

1-cable Mats

Appearance	Dimensions		Black	Yellow
Appearance	A (mm)	B (mm)	Model	Model
	300	300	UMMA-0300-0300-1	UMMYA-0300-0300-1
	400	400	UMMA-0400-0400-1	UMMYA-0400-0400-1
	500	250	UMMA-0500-0250-1	UMMYA-0500-0250-1
	500	400	UMMA-0500-0400-1	UMMYA-0500-0400-1
	500	500	UMMA-0500-0500-1	UMMYA-0500-0500-1
	500	1500	UMMA-0500-1500-1	UMMYA-0500-1500-1
	600	400	UMMA-0600-0400-1	UMMYA-0600-0400-1
	750	250	UMMA-0750-0250-1	UMMYA-0750-0250-1
	750	500	UMMA-0750-0500-1	UMMYA-0750-0500-1
	750	750	UMMA-0750-0750-1	UMMYA-0750-0750-1
	750	1500	UMMA-0750-1500-1	UMMYA-0750-1500-1
	1000	500	UMMA-1000-0500-1	UMMYA-1000-0500-1
	1000	750	UMMA-1000-0750-1	UMMYA-1000-0750-1
	1000	1000	UMMA-1000-1000-1	UMMYA-1000-1000-1
	1000	1250	UMMA-1000-1250-1	UMMYA-1000-1250-1
	1000	1500	UMMA-1000-1500-1	UMMYA-1000-1500-1

2-cable Mats

Appearance	Dimensions		Black	Yellow
Appearance	A (mm)	B (mm)	Model	Model
	300	300	UMMA-0300-0300-2	UMMYA-0300-0300-2
	400	400	UMMA-0400-0400-2	UMMYA-0400-0400-2
	500	250	UMMA-0500-0250-2	UMMYA-0500-0250-2
	500	400	UMMA-0500-0400-2	UMMYA-0500-0400-2
	500	500	UMMA-0500-0500-2	UMMYA-0500-0500-2
	500	1500	UMMA-0500-1500-2	UMMYA-0500-1500-2
	600	400	UMMA-0600-0400-2	UMMYA-0600-0400-2
	750	250	UMMA-0750-0250-2	UMMYA-0750-0250-2
	750	500	UMMA-0750-0500-2	UMMYA-0750-0500-2
	750	750	UMMA-0750-0750-2	UMMYA-0750-0750-2
	750	1500	UMMA-0750-1500-2	UMMYA-0750-1500-2
	1000	500	UMMA-1000-0500-2	UMMYA-1000-0500-2
	1000	750	UMMA-1000-0750-2	UMMYA-1000-0750-2
	1000	1000	UMMA-1000-1000-2	UMMYA-1000-1000-2
	1000	1250	UMMA-1000-1250-2	UMMYA-1000-1250-2
	1000	1500	UMMA-1000-1500-2	UMMYA-1000-1500-2

Trims

Name	Model	Remarks
Ramp Trim with Yellow PVC Cover (1.22 m)	UMRT4	Installed on the perimeter of the Safety Mat. Each Trim is composed of two parts, an aluminum base and a PVC Cover. Possible to install cables inside.
Ramp Trim with Yellow PVC Cover (2.44 m)	UMRT8
Joining Trim (1.22 m)	UMJS4	The Joining Trims join the Safety Mats when two or more Safety Mats are being combined. In addition to joining the Safety Mats, the Joining Trims preserve the Safety Mat's sensitivity at the joints. Possible to install cables inside except M8 connector portion.
Joining Trim (2.44 m)	UMJS8
Aluminum Ramp Trim (2.44 m)	UMAL	Installed on the perimeter of the Safety Mat.
Molded Outside Corner	UMOC	Installed at the outside corners of the Safety Mat combining with Ramp Trims with Yellow PVC Cover.
Molded Inside Corner	UMIC	Installed at the inside corners when two or more Safety Mats combining with Ramp Trims with Yellow PVC Cover are being combined.

Note: 12 screws (No. 8-32 × 1.25") and 12 anchors are included with Ramp Trim with Yellow PVC Cover (UMRT4 and UMRT8) and Aluminum Ramp Trim (UMAL).

Trim Kits (Not Including Safety Mat)

Applicable Safety Mat		Trim Kit model	Remarks
Black	Yellow	Trim Kit model	Remarks
UMMA-0300-0300-[]	UMMYA-0300-0300-[]	MTKCA-0300-0300	A set of Molded Outside Corners and Trims • 4 UMOC Molded Outside Corners • 4 Ramp Trims with Yellow PVC Corners that fit the mat dimensions A and B
UMMA-0400-0400-[]	UMMYA-0400-0400-[]	MTKCA-0400-0400
UMMA-0500-0250-[]	UMMYA-0500-0250-[]	MTKCA-0500-0250
UMMA-0500-0400-[]	UMMYA-0500-0400-[]	MTKCA-0500-0400
UMMA-0500-0500-[]	UMMYA-0500-0500-[]	MTKCA-0500-0500
UMMA-0500-1500-[]	UMMYA-0500-1500-[]	MTKCA-0500-1500
UMMA-0600-0400-[]	UMMYA-0600-0400-[]	MTKCA-0600-0400
UMMA-0750-0250-[]	UMMYA-0750-0250-[]	MTKCA-0750-0250
UMMA-0750-0500-[]	UMMYA-0750-0500-[]	MTKCA-0750-0500
UMMA-0750-0750-[]	UMMYA-0750-0750-[]	MTKCA-0750-0750
UMMA-0750-1500-[]	UMMYA-0750-1500-[]	MTKCA-0750-1500
UMMA-1000-0500-[]	UMMYA-1000-0500-[]	MTKCA-1000-0500
UMMA-1000-0750-[]	UMMYA-1000-0750-[]	MTKCA-1000-0750
UMMA-1000-1000-[]	UMMYA-1000-1000-[]	MTKCA-1000-1000
UMMA-1000-1250-[]	UMMYA-1000-1250-[]	MTKCA-1000-1250
UMMA-1000-1500-[]	UMMYA-1000-1500-[]	MTKCA-1000-1500

Note: 1. Put 1 in the box ([]) in the model number for 1-cable Mat or 2 for 2-cable Mat.
2. 24 screws (No. 8-32 × 1.25") and 24 anchors are included with a Trim Kit.

　　　3. The length of the Ramp Trims with Yellow PVC Covers has been made to fit mat dimensions A and B.

　　　　 PVC Trim Cover = (Mat dimensions A and B) - 50.8 mm

Safety Mat Controller

Product	Appearance	Safety outputs	Auxiliary outputs	Rated voltage	Terminal block type	Model
Safety Mat Controller		SPDT-NO	SPDT-NC	24 VDC	Screw terminals	MC3
Safety Mat/ Edge Controller *		SPDT-NO	SPST-NO	120 VAC or 24 VAC/DC	Screw terminals	SCC-1224A

* Can also be connected with SGE-series Safety Edges.
Refer to the SCC-1224A Safety Mat/Edge Controller User Manual (Cat. No. Z394) for details.

Accessories

Using with 1-cable Mats

Connecting a 1-cable Mat to a MC3 Safety Mat Controller, SCC-1224A Safety Mat/Edge Controller or NX-series Safety Controller.

Cables

Name	Length	Remarks	Model
Single Connector Cable	2 m	Single connector cable to connect a 1- cable Mat (UM[][]A-[]-[]-1) to a Controller. M8, 4-socket	UMA-CBL-4PCF-M8-02M
	5 m		UMA-CBL-4PCF-M8-05M
	10 m		UMA-CBL-4PCF-M8-10M
Male-Female Extension Cable	2 m	Extension cable to connect a 1-cable Mat (UM[][]A-[]-[]-1) to a Controller. M8, 4-pin	UMA-CBL-4PMF-M8-02M
	5 m		UMA-CBL-4PMF-M8-05M
	10 m		UMA-CBL-4PMF-M8-10M

Using with 2-cable Mats

Connecting a 2-cable Mat to a MC3 Safety Mat Controller, SCC-1224A Safety Mat/Edge Controller or NX-series Safety Controller.

Cables

Name	Length	Remarks	Model
Single Connector Cable	2 m	Single connector cable to connect a 2- cable Mat (UM[][]A-[]-[]-2) to a Controller. M8, 3-socket	UMA-CBL-3PCF-M8-02M
	5 m		UMA-CBL-3PCF-M8-05M
	10 m		UMA-CBL-3PCF-M8-10M
Male-Female Extension Cable	2 m	Extension cable to connect a 2-cable Mat (UM[][]A-[]-[]-2) to a Controller. M8, 3-pin	UMA-CBL-3PMF-M8-02M
	5 m		UMA-CBL-3PMF-M8-05M
	10 m		UMA-CBL-3PMF-M8-10M

Male-Male Extension Cable and Female-Female Extension Cable

Refer to Connection Examples of Safety Mat and Controller on Data Sheet for details on how to connect.

Appearance	Name	Length	Remarks	Model
	M8, 3-pin Male to Male Extension Cable	0.15 m	To be used to connect the connector sockets of 2-cable UMA Safety Mat together.	UMA-CBL-3PMM-M8-0.15M
	M8, 3-pin Female to Female Extension Cable	0.15 m	To be used to connect the connector plugs of 2-cable UMA Safety Mat together.	UMA-CBL-3PFF-M8-0.15M

Terminating Resistor

Appearance	Remarks	Model
	Terminating resistor, 8.2 kΩ To be used to connect a 2-cable Mat (UM[][]A-[]-[]-2) to an SCC-1224A Safety Mat/ Edge Controller.	UMA-TRES

last update: November 1, 2022
