G2RV-SR

Slim I/O Relay

G2RV-SR

Our Value Design Products Increase the Value of Your Control Panels. Global standard size, low profile slim I/O relay with width 6.2 mm.

Model Number Structure

Model Number Legend

G2RV-SR Lineup 2

Ordering Information

Terminal
(Wire connection)
Classification Latching lever
(Test switch)
Rated input
voltage (V)
Model
Push-In Plus
Terminal
Standard No DC 12 G2RV-SR500 DC12
24 G2RV-SR500 DC24
AC/DC 24 G2RV-SR500 AC/DC24
48 G2RV-SR500 AC/DC48
AC 100 G2RV-SR500 AC100
110 G2RV-SR500 AC110
200 G2RV-SR500 AC200
230 G2RV-SR500 AC230
Yes DC 24 G2RV-SR501 DC24
AC/DC 24 G2RV-SR501 AC/DC24
Microloads No DC 12 G2RV-SR500-AP DC12
24 G2RV-SR500-AP DC24
AC/DC 24 G2RV-SR500-AP AC/DC24
48 G2RV-SR500-AP AC/DC48
AC 100 G2RV-SR500-AP AC100
110 G2RV-SR500-AP AC110
200 G2RV-SR500-AP AC200
230 G2RV-SR500-AP AC230
Screw terminal Standard No DC 12 G2RV-SR700 DC12
24 G2RV-SR700 DC24
AC/DC 24 G2RV-SR700 AC/DC24
48 G2RV-SR700 AC/DC48
AC 100 G2RV-SR700 AC100
110 G2RV-SR700 AC110
200 G2RV-SR700 AC200
230 G2RV-SR700 AC230
Yes DC 24 G2RV-SR701 DC24
AC/DC 24 G2RV-SR701 AC/DC24
Microloads No DC 12 G2RV-SR700-AP DC12
24 G2RV-SR700-AP DC24
AC/DC 24 G2RV-SR700-AP AC/DC24
48 G2RV-SR700-AP AC/DC48
AC 100 G2RV-SR700-AP AC100
110 G2RV-SR700-AP AC110
200 G2RV-SR700-AP AC200
230 G2RV-SR700-AP AC230

Note: Sockets are not sold individually.

Relay for Maintenance

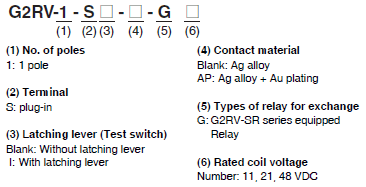

Model Number Legend

G2RV-SR Lineup 6

Type Latching
Lever
(Test switch)
Rated coil
voltage (V)
Model Applicable model
Standard No DC 11 G2RV-1-S-G DC11 G2RV-SR700/500 DC12V
21 G2RV-1-S-G DC21 G2RV-SR700/500 DC24V
G2RV-SR700/500 AC/DC24V
48 G2RV-1-S-G DC48 G2RV-SR700/500 AC/DC48V
G2RV-SR700/500 AC100V
G2RV-SR700/500 AC110V
G2RV-SR700/500 AC200V
G2RV-SR700/500 AC230V
Yes DC 21 G2RV-1-SI-G DC21 G2RV-SR701/501 DC24V
G2RV-SR701/501 AC/DC24V
Microload No DC 11 G2RV-1-S-AP-G DC11 G2RV-SR700/500-AP DC12V
21 G2RV-1-S-AP-G DC21 G2RV-SR700/500-AP DC24V
G2RV-SR700/500-AP AC/DC24V
48 G2RV-1-S-AP-G DC48 G2RV-SR700/500-AP AC/DC48V
G2RV-SR700/500-AP AC100V
G2RV-SR700/500-AP AC110V
G2RV-SR700/500-AP AC200V
G2RV-SR700/500-AP AC230V

Note: Voltage is reduced within the socket for the slim I/O relay, so the rated input voltage and rated coil voltage of
        replacement relays are different.

Accessories (order separately)

Short Bars

Appearance Pitch No. of
poles
Colors Model * Minimum order
(Quantity)
Maximum energizing
current
3508_lu_3_1 6.2 mm 2 Red (R),
Blue (S),
Yellow (Y)
PYDN-6.2-020[] 10 32 A
3 PYDN-6.2-030[]
4 PYDN-6.2-040[]
10 PYDN-6.2-100[]
20 PYDN-6.2-200[]

Note: Use for wiring to the adjacent socket.
* Replace the box ([]) in the model number with the code for the covering color. [] color selection: R = red, S = blue, Y = yellow

Label

Appearance Model Minimum order (Sheet)
(Pieces per sheet)
3508_lu_4_1 XW5Z-P2.5LB1 * 5
(1 sheet/72 pieces)
XW5Z-P2.5LB2

* Available following June 2017 production.

Separate Plate

Appearance Model
3508_lu_5_1 XW5Z-EP12

PLC interface unit

Appearance I/O classification Connection method Common process Applicable Models * Model
3508_lu_6_1 For input Push-In PNP G2RV-SR500-AP P2RVC-8-I-5-1
NPN P2RVC-8-I-5
Screw PNP G2RV-SR700-AP P2RVC-8-I-7-1
For output Push-In PNP G2RV-SR500
G2RV-SR501
G3RV-SR500
P2RVC-8-O-5-1
NPN P2RVC-8-O-5
Screw PNP G2RV-SR700
G2RV-SR701
G3RV-SR700
P2RVC-8-O-7-1

* Please make sure applicable models, P2RVC can not be used other combination than the above table.

Parts for DIN Track Mounting

Appearance Type Model Minimum order
(Quantity)
3508_lu_7_1 DIN Tracks 1 m PFP-100N 1
0.5 m PFP-50N
3508_lu_7_2 End Plate * PFP-M 10
3508_lu_7_3 Spacer PFP-S

* When mounting DIN Track, please use End Plate (PFP-M).

Applicable Cables

Name Appearance Cable
length
L (mm)
Connecting Cables Applicable Connectors
Cables with
Loose Wires
P2RV-A[]C
8 I/O
points
csm001050155_lu_6_1 1,000 P2RV-A100C Various devices
2,000 P2RV-A200C
3,000 P2RV-A300C
5,000 P2RV-A500C
OMRON PLC
Connecting
Cables with
Connectors (1:4)
P2RV-4-[]C
32 output
points
csm001050155_lu_6_2 1,000 P2RV-4-100C PLC I/O Units with MIL
connectors (1:4)
CJ1W-OD232/OD262, etc.
2,000 P2RV-4-200C
3,000 P2RV-4-300C
5,000 P2RV-4-500C
OMRON PLC
Connecting
Cables with
Connectors (1:4)
P2RV-4-[]IMC
32 input
points
csm001050155_lu_6_3 1,000 P2RV-4-100IMC PLC I/O Units with MIL
connectors (1:4)
CJ1W-ID232/ID262, etc. *1
2,000 P2RV-4-200IMC
3,000 P2RV-4-300IMC
5,000 P2RV-4-500IMC
OMRON PLC
Connecting
Cables with
Connectors (1:4)
P2RV-4-[]IFC
32 input
points
csm001050155_lu_6_4 1,000 P2RV-4-100IFC PLC I/O Units with Fujitsu/
Otax connectors (1:4)
CJ1W-ID231/ID261, etc. *2
2,000 P2RV-4-200IFC
3,000 P2RV-4-300IFC
5,000 P2RV-4-500IFC
OMRON PLC
Connecting
Cables with
Connectors (1:1)
P2RV-A[]C-OMR
NX
8 output
points
csm001050155_lu_6_6 500 P2RV-A050C-OMR NX PLC I/O Units with
screw-less clamp
terminal block (1:1)
For inputs: NX-ID4442
For outputs: NX-OD4256
1,000 P2RV-A100C-OMR NX
8 input
points
500 P2RV-A050IC-OMR NX
1,000 P2RV-A100IC-OMR NX
Schneider Electric
PLC Connecting
Cables
P2RV-[]C-SCH-[]
32 input
points
csm001050155_lu_6_7 500 P2RV-050C-SCH-A Schneider Electric PLCs with
32-point connectors (1:4)
For inputs: 140 DDI 353 00
For outputs: 140 DDO 353 00
1,000 P2RV-100C-SCH-A
2,000 P2RV-200C-SCH-A
3,000 P2RV-300C-SCH-A
5,000 P2RV-500C-SCH-A
32 output
points
500 P2RV-050C-SCH-B
1,000 P2RV-100C-SCH-B
2,000 P2RV-200C-SCH-B
3,000 P2RV-300C-SCH-B
5,000 P2RV-500C-SCH-B
16 input
points
csm001050155_lu_6_8 500 P2RV-050C-SCH-C Schneider Electric PLCs with
16-point connectors (1:2)
For inputs: BMX DDI 1602
For outputs: BMX DDO 1602
1,000 P2RV-100C-SCH-C
2,000 P2RV-200C-SCH-C
3,000 P2RV-300C-SCH-C
5,000 P2RV-500C-SCH-C
16 output
points
500 P2RV-050C-SCH-D
1,000 P2RV-100C-SCH-D
2,000 P2RV-200C-SCH-D
3,000 P2RV-300C-SCH-D
5,000 P2RV-500C-SCH-D
Siemens PLC
Connecting Cables
P2RV-[]C-SIM-[]
32 input
points
csm001050155_lu_6_9 500 P2RV-050C-SIM-A Siemens PLCs with
32-point connectors (1:4)
For inputs:
6ES7 321-1BL00-0AA0
For outputs:
6ES7 322-1BL00-0AA0
1,000 P2RV-100C-SIM-A
2,000 P2RV-200C-SIM-A
3,000 P2RV-300C-SIM-A
5,000 P2RV-500C-SIM-A
32 output
points
500 P2RV-050C-SIM-B
1,000 P2RV-100C-SIM-B
2,000 P2RV-200C-SIM-B
3,000 P2RV-300C-SIM-B
5,000 P2RV-500C-SIM-B
16 input
points
csm001050155_lu_6_10 500 P2RV-050C-SIM-C Siemens PLCs with
16-point connectors (1:2)
For inputs:
6ES7 321-1BH02-0AA0
1,000 P2RV-100C-SIM-C
2,000 P2RV-200C-SIM-C
3,000 P2RV-300C-SIM-C
5,000 P2RV-500C-SIM-C
32 input
points
csm001050155_lu_6_11 500 P2RV-050C-SIM-D Siemens PLCs with
32-point connectors (1:4)
For inputs:
6ES7 421-1BL-0AA0
For outputs:
6ES7 422-1BL-0AA0
1,000 P2RV-100C-SIM-D
2,000 P2RV-200C-SIM-D
3,000 P2RV-300C-SIM-D
5,000 P2RV-500C-SIM-D
32 output
points
500 P2RV-050C-SIM-E
1,000 P2RV-100C-SIM-E
2,000 P2RV-200C-SIM-E
3,000 P2RV-300C-SIM-E
5,000 P2RV-500C-SIM-E

*1. Use the P2RVC-8-I-[]-1(PNP) as the PLC interface unit when connecting to the CJ1W-ID232/ID262 (or a unit with an
     equivalent terminal arrangement).
*2. Use the P2RVC-8-I-[]-1(PNP) as the PLC interface unit when connecting to the CJ1W-ID231/ID261 (or a unit with an
     equivalent terminal arrangement).
