DIN Track Push-in Terminal Blocks
last update: August 23, 2021
Classification | Product
Type |
Applicable
wire sizes * (mm2) |
Number
of levels |
Number of
cramp position per level |
Color | Weight
(gram) |
Model |
---|---|---|---|---|---|---|---|
Feed
Through Terminal Blocks |
Standard
terminals |
0.08 to 1.5 | 1 | 2 | Dark gray | 3.3 | XW5T-P1.5-1.1-1 |
0.14 to 2.5 | 1 | 2 | 6.3 | XW5T-P2.5-1.1-1 | |||
0.2 to 4.0 | 1 | 2 | 8.4 | XW5T-P4.0-1.1-1 | |||
0.08 to 1.5 | 1 | 2 | Blue | 3.3 | XW5T-P1.5-1.1-1BL | ||
0.14 to 2.5 | 1 | 2 | 6.3 | XW5T-P2.5-1.1-1BL | |||
0.2 to 4.0 | 1 | 2 | 8.4 | XW5T-P4.0-1.1-1BL | |||
Multi tiers
terminal |
0.08 to 1.5 | 2 | 2 | Dark gray | 6.5 | XW5T-P1.5-1.1-2 | |
0.14 to 2.5 | 2 | 2 | 12.5 | XW5T-P2.5-1.1-2 | |||
0.2 to 4.0 | 2 | 2 | 16.5 | XW5T-P4.0-1.1-2 | |||
0.08 to 1.5 | 2 | 2 | Blue | 6.5 | XW5T-P1.5-1.1-2BL | ||
0.14 to 2.5 | 2 | 2 | 12.5 | XW5T-P2.5-1.1-2BL | |||
0.2 to 4.0 | 2 | 2 | 16.5 | XW5T-P4.0-1.1-2BL | |||
Multi
conductor terminals |
0.08 to 1.5 | 1 | 3 | Dark gray | 4.1 | XW5T-P1.5-1.2-1 | |
0.14 to 2.5 | 1 | 3 | 8.2 | XW5T-P2.5-1.2-1 | |||
0.2 to 4.0 | 1 | 3 | 10.8 | XW5T-P4.0-1.2-1 | |||
0.08 to 1.5 | 1 | 3 | Blue | 4.1 | XW5T-P1.5-1.2-1BL | ||
0.14 to 2.5 | 1 | 3 | 8.2 | XW5T-P2.5-1.2-1BL | |||
0.2 to 4.0 | 1 | 3 | 10.8 | XW5T-P4.0-1.2-1BL | |||
0.08 to 1.5 | 1 | 4 | Dark gray | 4.9 | XW5T-P1.5-2.2-1 | ||
0.14 to 2.5 | 1 | 4 | 10.4 | XW5T-P2.5-2.2-1 | |||
0.2 to 4.0 | 1 | 4 | 13.4 | XW5T-P4.0-2.2-1 | |||
0.08 to 1.5 | 1 | 4 | Blue | 4.9 | XW5T-P1.5-2.2-1BL | ||
0.14 to 2.5 | 1 | 4 | 10.4 | XW5T-P2.5-2.2-1BL | |||
0.2 to 4.0 | 1 | 4 | 13.4 | XW5T-P4.0-2.2-1BL | |||
Grounding
Terminal Blocks |
Standard
terminals |
0.08 to 1.5 | 1 | 2 | Green/
yellow |
4.7 | XW5G-P1.5-1.1-1 |
0.14 to 2.5 | 1 | 2 | 9.9 | XW5G-P2.5-1.1-1 | |||
0.2 to 4.0 | 1 | 2 | 11.8 | XW5G-P4.0-1.1-1 | |||
Multi tiers
terminal |
0.08 to 1.5 | 2 | 2 | 8.1 | XW5G-P1.5-1.1-2 | ||
0.14 to 2.5 | 2 | 2 | 16.6 | XW5G-P2.5-1.1-2 | |||
0.2 to 4.0 | 2 | 2 | 20.8 | XW5G-P4.0-1.1-2 | |||
Multi
conductor terminals |
0.08 to 1.5 | 1 | 3 | 5.5 | XW5G-P1.5-1.2-1 | ||
0.14 to 2.5 | 1 | 3 | 11.6 | XW5G-P2.5-1.2-1 | |||
0.2 to 4.0 | 1 | 3 | 14.1 | XW5G-P4.0-1.2-1 | |||
0.08 to 1.5 | 1 | 4 | 6.3 | XW5G-P1.5-2.2-1 | |||
0.14 to 2.5 | 1 | 4 | 13.8 | XW5G-P2.5-2.2-1 | |||
0.2 to 4.0 | 1 | 4 | 16.7 | XW5G-P4.0-2.2-1 |
* For stranded wires.
Appearance | No. of poles | Colors | Model* | Application |
---|---|---|---|---|
2 | Red (RD)
Blue (BL) Yellow (YL) |
XW5S-P1.5-2[] | Used for cross-over wiring between
Terminal Blocks. |
|
3 | XW5S-P1.5-3[] | |||
4 | XW5S-P1.5-4[] | |||
5 | XW5S-P1.5-5[] | |||
10 | XW5S-P1.5-10[] |

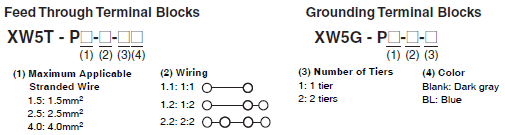

* Replace the box ([]) in the model number with the code for the covering color. Specify the color: RD = red, BL = blue, YL = yellow
Appearance | No. of poles | Colors | Model* | Application |
---|---|---|---|---|
2 | Red (RD)
Blue (BL) Yellow (YL) |
XW5S-P2.5-2[] | Used for cross-over wiring between
Terminal Blocks. |
|
3 | XW5S-P2.5-3[] | |||
4 | XW5S-P2.5-4[] | |||
5 | XW5S-P2.5-5[] | |||
10 | XW5S-P2.5-10[] |
* Replace the box ([]) in the model number with the code for the covering color. Specify the color: RD = red, BL = blue, YL = yellow
Appearance | No. of poles | Colors | Model* | Application |
---|---|---|---|---|
2 | Red (RD)
Blue(BL) Yellow (YL) |
XW5S-P4.0-2[] | Used for cross-over wiring between
Terminal Blocks. |
|
3 | XW5S-P4.0-3[] | |||
4 | XW5S-P4.0-4[] | |||
5 | XW5S-P4.0-5[] | |||
10 | XW5S-P4.0-10[] |
* Replace the box ([]) in the model number with the code for the covering color. Specify the color: RD = red, BL = blue, YL = yellow
Appearance | Applicable
Terminal Blocks |
Model | Contents | Minimum
order (Sheet) |
Application |
---|---|---|---|---|---|
XW5[]-P1.5-[] | XW5Z-P1.5LB1 | 1 sheet with
102 top labels |
5 | Used to identify wiring.
(Material: PA resin, blank) |
|
XW5Z-P1.5LB2 | 1 sheet with
108 side labels |
5 | |||
XW5[]-P2.5-[] | XW5Z-P2.5LB1 | 1 sheet with
72 top labels |
5 | ||
XW5Z-P2.5LB2 | 1 sheet with
72 side labels |
5 | |||
XW5[]-P4.0-[] | XW5Z-P4.0LB1 | 1 sheet with
60 top labels |
5 | ||
XW5Z-P4.0LB2 | 1 sheet with
60 side labels |
5 |
Appearance | Applicable
Terminal Blocks |
Model | Application |
---|---|---|---|
XW5[]-P1.5-1.1-1 | XW5E-P1.5-1.1-1 | This part is required to prevent electric shock.
Always mount End Covers to the following locations when you use Terminal Blocks. (For details, refer to Data Sheet.) • Exposed metal surface of the last Terminal Block • Any Terminal Block that is next to a different shape of Terminal Block |
|
XW5[]-P1.5-1.1-2 | XW5E-P1.5-1.1-2 | ||
XW5[]-P1.5-1.2-1 | XW5E-P1.5-1.2-1 | ||
XW5[]-P1.5-2.2-1 | XW5E-P1.5-2.2-1 | ||
XW5[]-P2.5-1.1-1 | XW5E-P2.5-1.1-1 | ||
XW5[]-P2.5-1.1-2 | XW5E-P2.5-1.1-2 | ||
XW5[]-P2.5-1.2-1 | XW5E-P2.5-1.2-1 | ||
XW5[]-P2.5-2.2-1 | XW5E-P2.5-2.2-1 | ||
XW5[]-P4.0-1.1-1 | XW5E-P4.0-1.1-1 | ||
XW5[]-P4.0-1.1-2 | XW5E-P4.0-1.1-2 | ||
XW5[]-P4.0-1.2-1 | XW5E-P4.0-1.2-1 | ||
XW5[]-P4.0-2.2-1 | XW5E-P4.0-2.2-1 |
Appearance | Width (mm) | Model | Application |
---|---|---|---|
|
6 | XW5Z-EP6 | End Brackets are installed on the ends of the Terminal Blocks to
prevent them from moving on the DIN Track. |
Appearance | Width (mm) | Model | Application |
---|---|---|---|
12 | XW5Z-EP12 | This part is used to create insulation distance.
Use Separator Plates according to the clearance and creeping distances required by the operating conditions of your equipment. |
Note: Refer to 6. Using the Accessories on Data Sheet for information on using the accessories.
